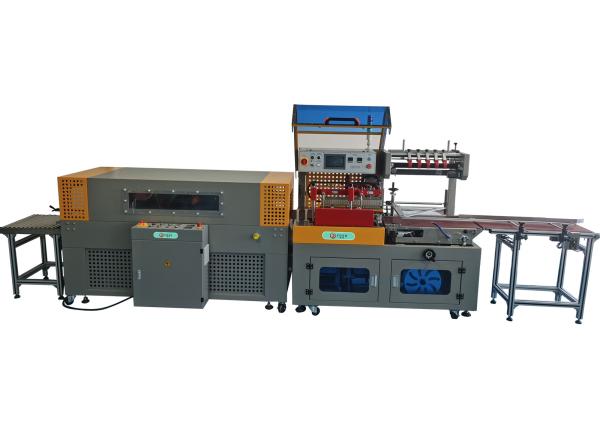

Full Auto L - Bar Vertical Sealer Shrink Wrapper Machine
Products Details
| Products Name | Full Auto L - Bar Vertical Sealer Shrink Wrapper Machine | Model Number | ZSL-5565CL + T-5025 |
| Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy Mining, Food Beverage Shops, Other, Advertising Company | Usage | Food, Beverage, Commodity, Medical, Chemical, Machinery Hardware, APPAREL, Textiles, Box, Book, Food, Cosmetics, Electronic Product, Etc. |
| Driven Type | Electric | Material | Carbon Steel + Powder Painting |
| Core Components | PLC, Motor, Bearing, Frequency Converter | Automatic Grade | Automatic |
| Place of Origin | Guangdong, China | Machine Langue | Optional |
| Air Compressing | 5.5-8.5kg/cm3 | Warranty | 1 Year, 1 Year except consuming spare parts |
| After-sales Service Provided | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | After Warranty Service | Video technical support, No service, Online support, Spare parts, Field maintenance and repair service |
Technical Specification
| Model Name | ZSL-5565CL Vertical Sealer Machine | T-5025 Thermal Cycle Visual Shrink Machine | ZT-5030 Thermal Cycle Shrink Machine |
| Power Source | AC220V 3.2KW | AC380V 16KW | AC380V 12KW |
| External Dimension | L1960*W1590*H1320MM | L2000*W1050*H1180MM | L1700*W700*H1560MM |
| Cutter size / Tunnel size | 550*650MM | L1500*W500*H250MM | L1200*W500*H300MM |
| Temperature | 0-230°C Adjustable | 0-200°C Adjustable Wind Direction And Speed | 0-200°C Adjustable |
| Film | POF, PE, PVC | POF, PE, PVC | POF, PE, PVC |
| Packing Size | W + H ≤ 420mm, L + H ≤ 600mm, H ≤ 200mm, L ≥ 100mm | W ≤ 400mm H ≤ 200mm, W + H ≤ 480mm | W ≤ 430mm H ≤ 250mm, W + H ≤ 480mm |
| Packing Speed | 15 - 40 Pcs / Minute | 0-30 Meters / Minute | 0-30 Meters / Minute |
Technical Features
This machine is developed by our company which is with patent for special construction.It is with more merit except traditional scissor style:
1.Adopt sever motor for sealing blade, ensuring quick sealing, stable and fastening sealing edge.
2. With a vertical opening of sealing blade, it ensures sealing edge more stable and beautiful.
3.For package of product whose height is more than 80mm, its sealing effect will be better with straight sealing edge.
4. Easily adjust and make the sealing line on the center line of package.
5.Processing distance of sealing can be adjusted according to different height of package, to shorten working time, and increase working efficiency.
6.Adopt level and vertical photoelectric eye, can switch easily. It is fast to do packing for thin and small products. Very easy to finish packing.
7.Adopt most advanced PLC programming, easy operating, which have safety protection and alarm function.
8. Applied to single or combined package for products in different shapes.
Show Detail
Operator Panel: Aesthetic and minimalist design, Chinese and English notes, Digital temperature controller can control the temperature arbitrarily, HMI supports all languages and can switch between multiple. languages simultaneously for suit different operators. Various parameters can be easily set through HMI.
Electric Cabinet: Using Mitsubishi PLC and other famous brand electrical appliances, the machine runs smoothly and stably, the program after 16 years of continuous accumulation and update, has been nearly perfect, to ensure packaging speed and effect.
Thermal cycle visual shrink packaging tunnel keeping constant temperature. Can be set different temperature to suit for different film, wind direction and speed also can be adjusted to.
Sample: The vertical sealing height is adjustable to the height of the product, allowing for the sealing line to be in the center of the package.
Packaging And Delivery
1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Port Guangzhou or Shenzhen
